>> Valve
>>
2

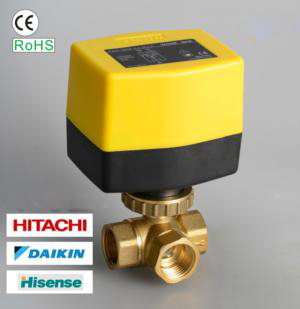

Valve รุ่น DC Motorized Ball Valve

Valve body Specification


Model No.

Inner Dia.

Inch

Kvs(m3/h)

Pvmax(KPa)

Ps(KPa)

W8BV215

12mm

1/2”

8.6

1000

1400

W8BV220

15mm

3/4”

21

1000

1400

W8BV225

20mm

1”

26

1000

1400

W8BV315

12mm

1/2”

8.6

1000

1400

W8BV320

15mm

3/4”

21

1000

1400

W8BV325

18mm

1”

26

1000

1400




Actuator Specification

Model No.

Working Voltage

Control type

Output torque

Consumption

On/off time

Valve body

WRA-4203

DC3V

3-piont or on/off

2N.m

2W

2-6S

W8BV215

W8BV220

W8BV225

W8BV315

W8BV320

W8BV325

WRA-4203A

On/off

WRA-4212

DC12V

3-piont or on/off

WRA-4212A

On/off

WRA-4224

DC24V

3-piont or on/off

WRA-4224A

On/off

 Wiring diagram

WRA-4203, WRA-4212,WRA-4224

WRA-4203A,WRA-4212A,WRA-4224A
