Software Metex

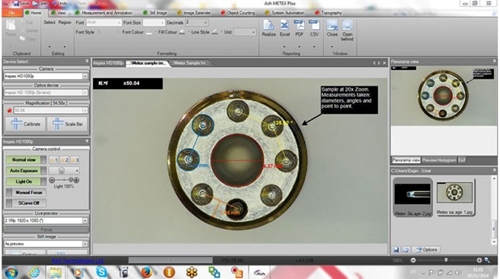

Metex Includes Many Measuring Functions:

Ruler, Ellipse, Protractor, Three Point Circle, Circle Center Distance, Point to Line Distance. Measurement can be done on still images or live camera image. Add text for labelling and recording purposes. Recall calibrated magnification levels and control Inspex parameters such as brightness, focus, zoom and exposure. (Metex Plus only)

Reporting

Measurement results and images can be easily exported to Excel, CSV or PDF file formats for documentation purposes.

Interface

Metex has a modern and intuitive user interface. Functionality has been grouped logically and the program is easy to use.

Multiple Languages

Metex comes with multiple language options. Language can be switched at any time, no need for downloading and installation of extra files.

Technical Specifications

Hardware Compatible with most major chipsets and expended USB 3.0 via PCIe Gen1.1 x1, USB 2.0
Operating System Windows 7,8,8.1
CPU The processing of the video is done by the ASH Interface and will not occupy the CPU
Video Output Up to 1920 x 1200 60fps
Dimensions 84.25 x 42.80 x 12.60 (LxWxH mm)
Power <= 2.5W
Operating Temperature Operating: 0 – 50 C
Storage: -20 – 70 C
